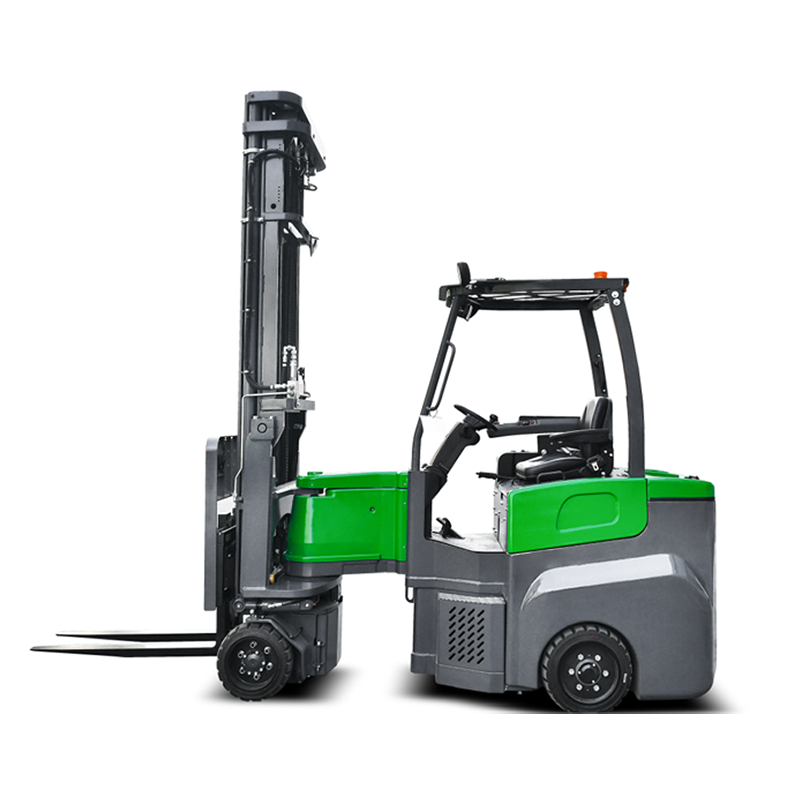

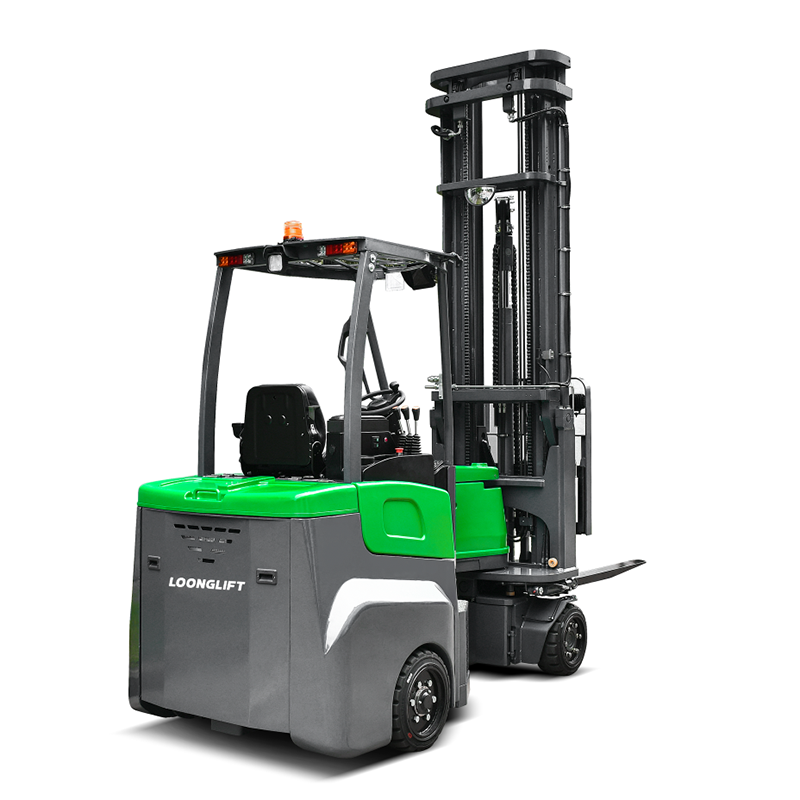

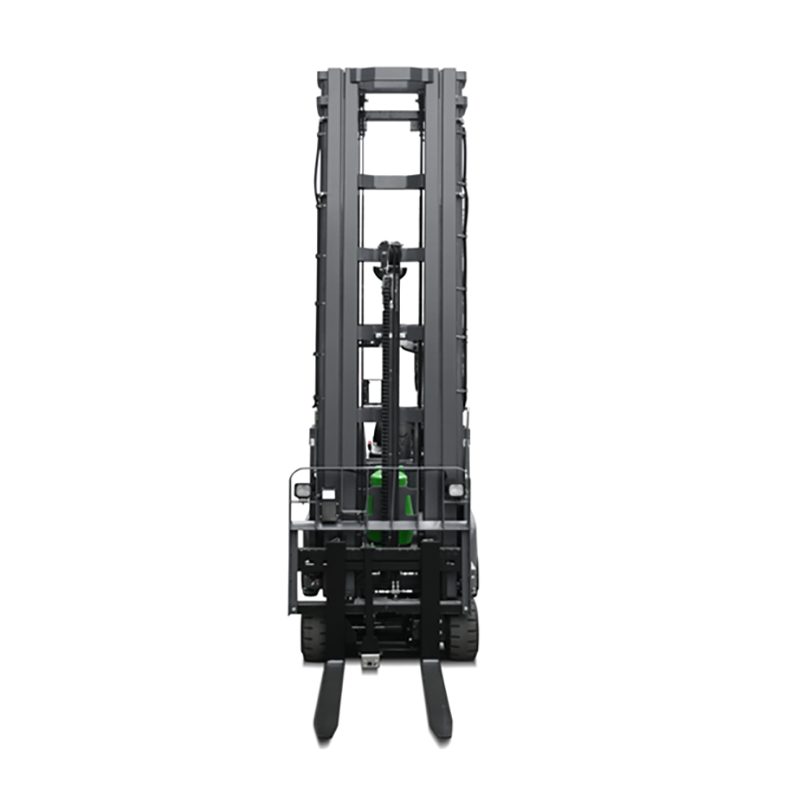

Forklift
| Load parameter table | |||||||||
| MJ20H Wide Body | |||||||||
| Lift Height(mm) | Load capacity(kg) | ||||||||
| 12500 | 900 | 850 | 810 | 770 | 730 | 700 | 670 | ||
| 12000 | 950 | 900 | 850 | 810 | 780 | 740 | 710 | ||
| 11500 | 1000 | 950 | 900 | 860 | 820 | 780 | 750 | ||
| 11000 | 1050 | 990 | 940 | 900 | 860 | 820 | 790 | ||
| 10800 | 1070 | 1010 | 960 | 920 | 870 | 840 | 800 | ||
| 10500 | 1100 | 1040 | 990 | 940 | 900 | 860 | 820 | ||
| 10000 | 1200 | 1140 | 1080 | 1030 | 980 | 940 | 900 | ||
| 9500 | 1230 | 1160 | 1110 | 1050 | 1000 | 960 | 920 | ||
| 9000 | 1250 | 1180 | 1120 | 1070 | 1020 | 980 | 930 | ||
| 8500 | 1300 | 1230 | 1170 | 1110 | 1060 | 1010 | 970 | ||
| 8000 | 1350 | 1280 | 1210 | 1160 | 1100 | 1050 | 1010 | ||
| 7500 | 1400 | 1330 | 1260 | 1200 | 1140 | 1090 | 1050 | ||
| 7150 | 1430 | 1350 | 1290 | 1220 | 1170 | 1120 | 1070 | ||
| 7000 | 1500 | 1420 | 1350 | 1280 | 1220 | 1170 | 1120 | ||
| 6750 | 1530 | 1450 | 1380 | 1310 | 1250 | 1190 | 1140 | ||
| 6300 | 1550 | 1470 | 1390 | 1330 | 1270 | 1210 | 1160 | ||
| 5700 | 1600 | 1510 | 1440 | 1370 | 1310 | 1250 | 1200 | ||
| 5400 | 1630 | 1540 | 1470 | 1390 | 1330 | 1270 | 1220 | ||
| 4800 | 1730 | 1640 | 1560 | 1480 | 1410 | 1350 | 1290 | ||
| 4600 | 1800 | 1700 | 1620 | 1540 | 1470 | 1410 | 1350 | ||
| 3300 | 2000 | 1890 | 1800 | 1710 | 1630 | 1560 | 1500 | ||
| 600 | 650 | 700 | 750 | 800 | 850 | 900 | |||
| Horizontal load center distance(mm) | |||||||||
| MJ30H Wide Body | |||||||||
| Lift Height(mm) | Load capacity(kg) | ||||||||
| 12500 | / | / | / | / | / | / | / | ||
| 12000 | / | / | / | / | / | / | / | ||
| 11500 | / | / | / | / | / | / | / | ||
| 11000 | / | / | / | / | / | / | / | ||
| 10800 | / | / | / | / | / | / | / | ||
| 10500 | / | / | / | / | / | / | / | ||
| 10000 | / | / | / | / | / | / | / | ||
| 9500 | / | / | / | / | / | / | / | ||
| 9000 | / | / | / | / | / | / | / | ||
| 8500 | / | / | / | / | / | / | / | ||
| 8000 | 1500 | 1420 | 1350 | 1280 | 1220 | 1170 | 1120 | ||
| 7500 | 1560 | 1480 | 1400 | 1340 | 1270 | 1220 | 1170 | ||
| 7150 | 1600 | 1510 | 1440 | 1370 | 1310 | 1250 | 1200 | ||
| 7000 | 1650 | 1560 | 1480 | 1410 | 1350 | 1290 | 1230 | ||
| 6750 | 1700 | 1610 | 1530 | 1450 | 1390 | 1330 | 1270 | ||
| 6300 | 1750 | 1660 | 1570 | 1500 | 1430 | 1370 | 1310 | ||
| 5700 | 1900 | 1800 | 1710 | 1630 | 1550 | 1480 | 1420 | ||
| 5400 | 2000 | 1890 | 1800 | 1710 | 1630 | 1560 | 1500 | ||
| 4800 | 2100 | 1990 | 1890 | 1800 | 1710 | 1640 | 1570 | ||
| 4600 | 2500 | 2370 | 2250 | 2140 | 2040 | 1950 | 1870 | ||
| 3300 | 2700 | 2560 | 2430 | 2310 | 2200 | 2110 | 2020 | ||
| 1700 | 3000 | 2840 | 2700 | 2570 | 2450 | 2340 | 2240 | ||
| 600 | 650 | 700 | 750 | 800 | 850 | 900 | |||
| Horizontal load center distance(mm) | |||||||||
| Mast parameter table | |||||||||||
| Triplex full free mast | |||||||||||
| Model | MJ30SQC- | 46 | 48 | 54 | 57 | 63 | 67 | 70 | 71 | 75 | 80 |
| Lift height | h3(mm) | 4600 | 4800 | 5400 | 5700 | 6300 | 6750 | 7000 | 7150 | 7500 | 8000 |
| Mast extended height | h4(mm) | 5882 | 6082 | 6682 | 6982 | 7582 | 8032 | 8282 | 8432 | 8782 | 9282 |
| Mast retracted height | h1(mm) | 2818 | 2885 | 3085 | 3185 | 3385 | 3485 | 3568 | 3618 | 3734 | 3900 |
| Free lift height | h2(mm) | 1134 | 1200 | 1400 | 1500 | 1700 | 1950 | 2034 | 2084 | 2202 | 2368 |
| Triplex full free mast | |||||||||||
| Model | MJ20SQC- | 46 | 48 | 54 | 57 | 63 | 67 | 70 | 71 | 75 | 80 |
| Lift height | h3(mm) | 4600 | 4800 | 5400 | 5700 | 6300 | 6750 | 7000 | 7150 | 7500 | 8000 |
| Mast extended height | h4(mm) | 5800 | 6000 | 6600 | 6900 | 7500 | 7950 | 8200 | 8350 | 8700 | 9200 |
| Mast retracted height | h1(mm) | 2818 | 2885 | 3085 | 3185 | 3385 | 3485 | 3568 | 3618 | 3734 | 3900 |
| Free lift height | h2(mm) | 1134 | 1200 | 1400 | 1500 | 1700 | 1950 | 2034 | 2084 | 2202 | 2368 |
| Triplex full free mast | |||||||||||
| Model | MJ20SQC- | 85 | 90 | 95 | 100 | 105 | 108 | 110 | 115 | 120 | 125 |
| Lift height | h3(mm) | 8500 | 9000 | 9500 | 10000 | 10500 | 10800 | 11000 | 11500 | 12000 | 12500 |
| Mast extended height | h4(mm) | 9700 | 10200 | 10700 | 11200 | 11700 | 12000 | 12200 | 12700 | 13200 | 13700 |
| Mast retracted height | h1(mm) | 4067 | 4234 | 4400 | 4567 | 4734 | 4834 | 4900 | 5067 | 5234 | 5400 |
| Free lift height | h2(mm) | 2534 | 2700 | 2868 | 3034 | 3200 | 3300 | 3368 | 3534 | 3700 | 3868 |
| Note [1]: The parameters for wide-body and narrow-body frames are the same; | |||||||||||
| [2]: For custom specifications, please contact us. | |||||||||||
| Configuration | |||||||||||
| No. | Name | Specification Model | Brand | Origin | Remarks | ||||||
| 1 | Drive Motor | 18.5kW | SCHABMUELLER | Germany | Suitable for 48V | ||||||
| Drive Motor | 16.3kW | WanNan XinWei | China | Suitable for 80V | |||||||
| 2 | Lifting Motor | 15kW/16kW | HePu Power/WanNan XinWei | China | |||||||
| 3 | Controller | According to configuration | Curtis | USA | |||||||
| 4 | Contactor | SW200 | Albright | UK | |||||||
| 5 | Charger | CDJ48120 | Shino | China | Suitable for 48V | ||||||
| Charger | CDJ8070 | Shino | China | Suitable for 80V | |||||||
| 6 | Lead-acid Battery | QDC48-900 | Tianneng/HuoJu | China | Suitable for 48V | ||||||
| Lead-acid Battery | QDC80-500 | Tianneng/HuoJu | China | Suitable for 80V | |||||||
| 7 | Instrument | 3401T-5002 | Curtis | USA | |||||||
| 8 | Electric Proportional Thumb Switch | HZ-AMLF | ELOBAU | Germany | Suitable for electric proportional | ||||||
| Electric Proportional Hydraulic Multi-way Valve | CDD-F15C | Haihong | China | ||||||||
| Multi-way Valve | MCV04/MSV04 | Shimadzu Hydraulic | Japan | Suitable for multi-way valve | |||||||
| 9 | Hydraulic Steerer | XCEL45-100 | Eaton | USA | |||||||
| 10 | Gear Pump | DSG05C25F9H1 | Shimadzu Hydraulic | Japan | |||||||
| 11 | Hydraulic Motor | OMTS500/BM4S | DANFOSS/ZY | Denmark/China | |||||||
| 12 | Drive Axle Assembly | MT602 | Bonfigli | Italy | Suitable for 48V | ||||||
| Drive Axle Assembly | BQD160301 | MIMA | China | Suitable for 80V | |||||||
| 13 | Oil Cylinder | Standard | Bengbu Hydraulic/Haiyuan Hydraulic | China | |||||||
| 14 | Front Wheel | 16.25×7×11.25 | TRELLEBORG/ | Sweden/China | |||||||
| 15 | Rear Wheel | 18×7×12.125 | TRELLEBORG/ | Sweden/China | |||||||
| 16 | Brake | FH254048 | Hangzhou Fuhong | China | |||||||
| 17 | Slewing Bearing | Non-standard | Wanda Bearing | China | |||||||
| 16 | Accelerator | FZ3-132-133 | Comesys | Korea | |||||||
| Note: The table contains standard configurations. For special requirements, please contact us. | |||||||||||
| Stacking aisle parameter table | |||||||||||
| MJ20 Narrow Body | |||||||||||
| Pallet along fork dimensions (L) | Swing angle° | ||||||||||
| mm | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | ||
| Pallet along fork dimensions (W) | 800 | / | / | 1900 | 2050 | 2150 | 2250 | / | / | / | ±105 |
| 900 | / | / | 1950 | 2080 | 2180 | 2280 | / | / | / | ||
| 1000 | 1800 | 1900 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | ||
| 1100 | 1830 | 1930 | 2030 | 2130 | 2230 | 2330 | 2430 | 2530 | 2630 | ||
| 1200 | 1850 | 1950 | 2050 | 2150 | 2250 | 2350 | 2450 | 2550 | 2650 | ||
| 1300 | 1900 | 2000 | 2150 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | ±100 | |
| 1400 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | ±95 | |
| 1500 | 2350 | 2450 | 2550 | 2650 | 2750 | 2850 | 2950 | 3050 | 3150 | ±90 | |
| 1600 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | 3000 | 3100 | 3200 | ||
| MJ20W Semi-wide Body MJ20H Wide Body | |||||||||||
| Pallet along fork dimensions (L) | Swing angle° | ||||||||||
| mm | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | ||
| Pallet Across Fork Dimensions (W) | 800 | / | / | 2100 | 2250 | 2350 | 2450 | / | / | / | ±105 |
| 900 | / | / | 2150 | 2280 | 2380 | 2480 | / | / | / | ||
| 1000 | 2000 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | ||
| 1100 | 2030 | 2130 | 2230 | 2330 | 2430 | 2530 | 2630 | 2730 | 2830 | ||
| 1200 | 2050 | 2150 | 2250 | 2350 | 2450 | 2550 | 2650 | 2750 | 2850 | ||
| 1300 | 2100 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | ±100 | |
| 1400 | 2200 | 2300 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | 3000 | ±95 | |
| 1500 | 2350 | 2450 | 2550 | 2650 | 2750 | 2850 | 2950 | 3050 | 3150 | ±90 | |
| 1600 | 2400 | 2500 | 2600 | 2700 | 2800 | 2900 | 3000 | 3100 | 3200 | ||
| Note 1: The above data represents the minimum channel, which is the clear channel width between goods and goods; when the goods extend out of the shelf, the shelf channel distance needs to be increased accordingly, it is recommended to be +200 or more; the clear channel width for efficiency needs to be +100 or More; | |||||||||||
| Note 2: When W is greater than 1200 and the lifting height is less than 2.5 meters, the swing angle will be less than 210°. The larger the size, the smaller the angle; | |||||||||||
| Note 3: MJ30 channel is +200mm based on MJ20H; | |||||||||||

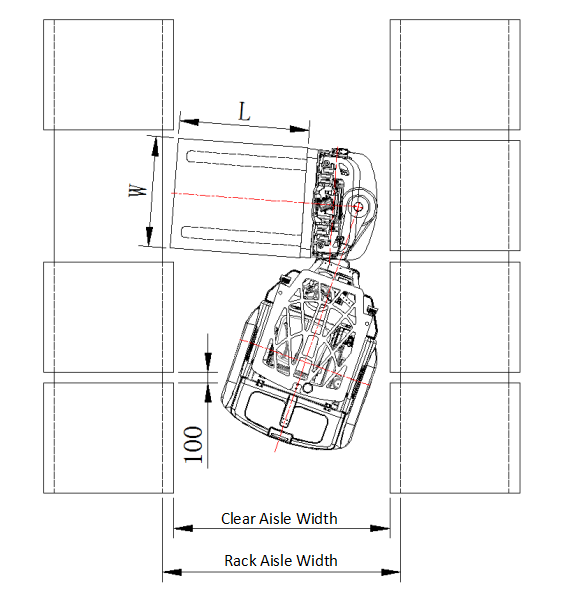

| Stacking aisle schematic diagram |
