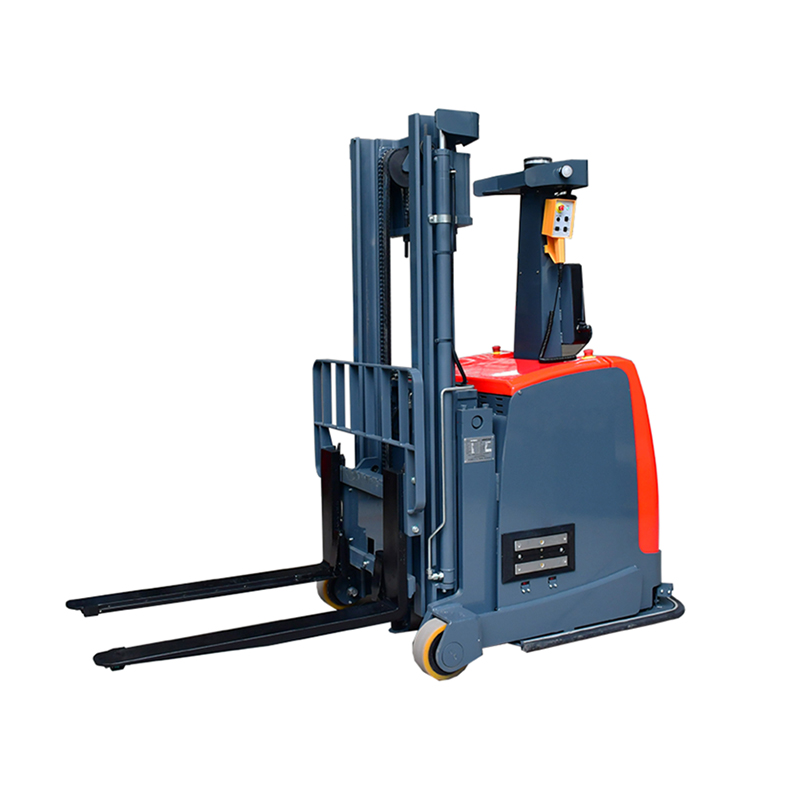

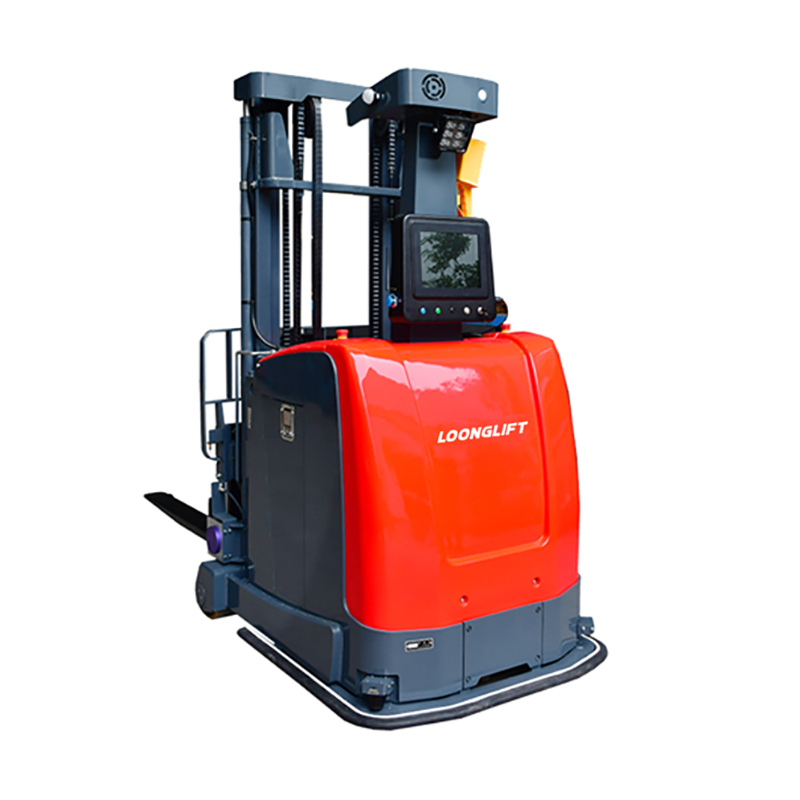

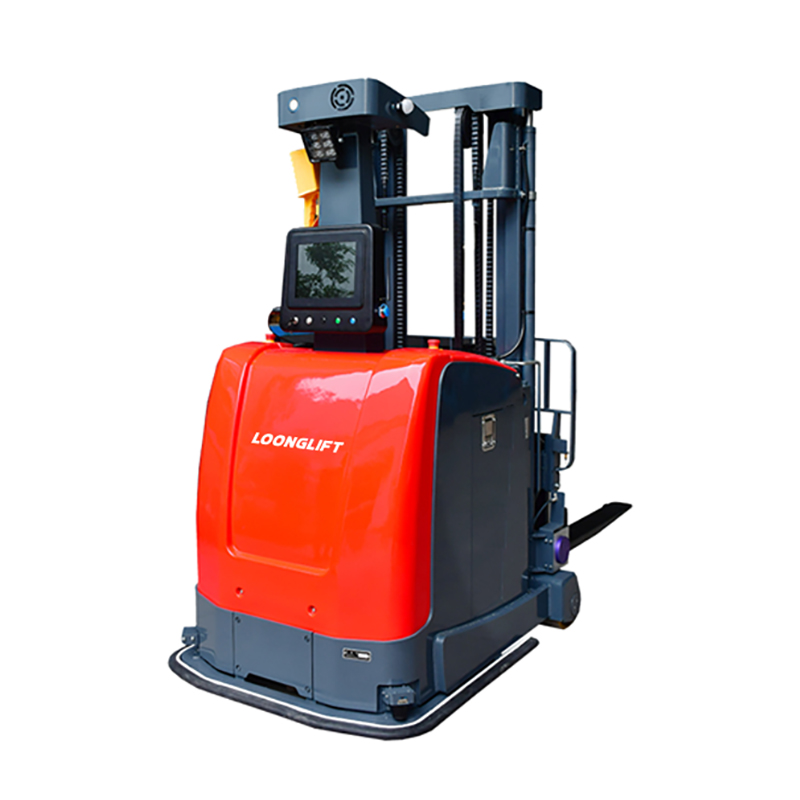

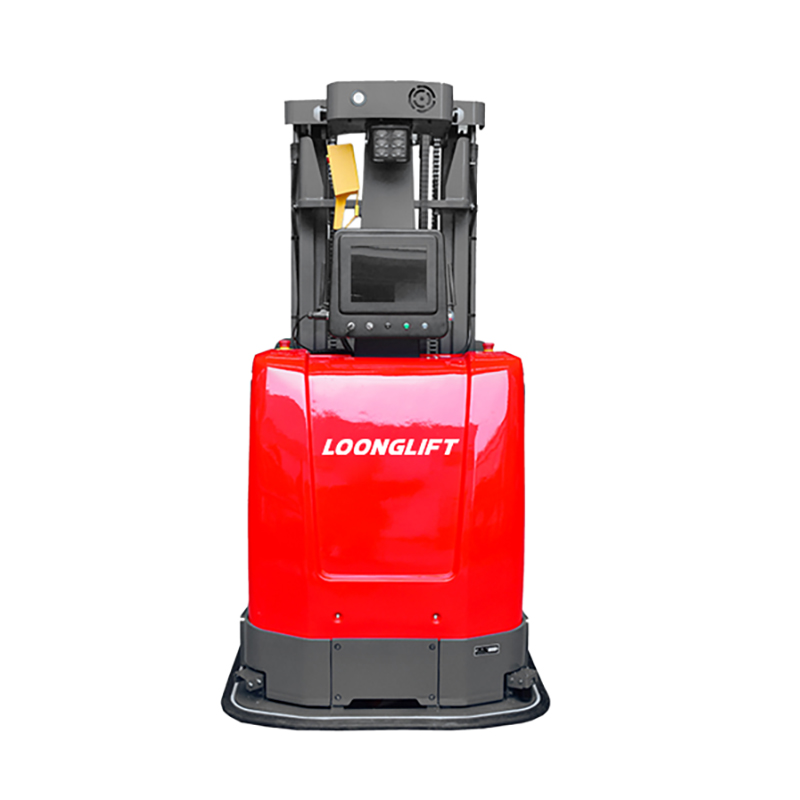

LOONGLIFT MBV AGV body Counterbalance Electric Pallet Stacker
Item:MBV 1MBV15～1MBV15R
- Telphone: 0086-18957458537
- Views: 50
Technical Parameters
| 1.1 | Model | MBV15 | MBV15 | ||
| 1.2 | Model code | 1MBV15 | 1MBV15R | ||
| 1.3 | Drive type: Electric, Diesel, Petrol, Gas, Manual | electric | electric | ||
| 1.4 | Operation type: manual, walking, standing, sitting, picking | walk | walk | ||
| 1.5 | Rated load | Q(t) | 1.5 | 1.5 | |
| 1.6 | Load center | C(mm) | 500 | 500 | |
| 1.8 | Front overhang | x(mm) | 116 | 170 | |
| 1.9 | Wheelbase | y(mm) | 1000 | 1055 | |
| weight | 2.1 | Weight (including battery) | kg | 2560 | 2770 |
| 2.2 | Axle load, fully loaded, front/rear | kg | 490/3570 | 530/3740 | |
| 2.3 | Axle load, unloaded, front/rear | kg | 1480/1090 | 1540/1230 | |
| tire | 3.1 | Tire type, front/rear | Polyurethane PU | Solid rubber | |
| 3.2 | Front wheel size | φ254×102 | φ310×120 | ||
| 3.3 | Rear wheel size | φ203×55 | φ305×140 | ||
| 3.4 | Number of wheels front/rear (X = drive wheels) | 1X/2 | 1X/2 | ||
| 3.7 | Track width, rear | b11(mm) | 893 | 918.5 | |
| size | 4.1 | Mast inclination, forward/backward | α/β(°) | - | - |
| 4.2 | Mast closed height | h1(mm) | See the mast parameter table | See the mast parameter table | |
| 4.4 | Lifting height | h3(mm) | See the mast parameter table | See the mast parameter table | |
| 4.5 | Mast extended height | h4(mm) | See the mast parameter table | See the mast parameter table | |
| 4.19 | Overall length(Safety edge not included) | l1(mm) | 2380【1】 | 2490【1】 | |
| 4.20 | Overall width(Safety edge not included) | l2(mm) | 1310 | 1420 | |
| 4.21 | Vehicle width (excluding safety edge) | b1/b2(mm) | 960/978【2】 | 960/1060【2】 | |
| 4.22 | Fork size | s/e/l(mm) | 40/100/1070 | 40/100/1070 | |
| 4.24 | Fork carriage width | b3(mm) | 750 | 750 | |
| 4.25 | Fork outside width | b5(mm) | 680/560/460【3】 | 680/560/460【3】 | |
| 4.31 | Ground clearance, fully loaded, under mast | m1(mm) | 84 | 78 | |
| 4.32 | Ground clearance, center of wheelbase | m2(mm) | 77 | 70 | |
| 4.34.1 | Aisle width, pallet 1000×1200 across forks | Ast(mm) | 2745 | 2840 | |
| 4.34.2 | Aisle width, pallet 800×1200 along fork | Ast(mm) | 2855 | 2955 | |
| 4.35 | Minimum turning radius | Wa(mm) | 1275【4】 | 1325【4】 | |
| performance | 5.1 | Travel speed | km/h | 3.6【5】 | 3.6【5】 |
| 5.2 | Lifting speed, fully loaded/unloaded | m/s | 0.1/0.15【6】 | 0.1/0.15【6】 | |
| 5.3 | Lowering speed, fully loaded/unloaded | m/s | 0.15-0.25/>0.1【6】 | 0.15-0.25/>0.1【6】 | |
| 5.8 | Maximum climbing grade, fully loaded/unloaded | % | 5/5 | 5/5 | |
| 5.10 | Service brake | Regenerative braking | Regenerative braking | ||
| Motor | 6.1 | Driving motor power, S2=60min | kW | AC 2.5 | AC 3.5 |
| 6.2 | Lifting motor power, S3=15% | kW | DC 3 | DC 3 | |
| 6.4 | Battery voltage/rated capacity K5 | (V)/(Ah) | 24/200 | 24/200 | |
| 6.5 | Battery weight | kg | 80 | 80 | |
| other | 8.1 | Drive control type | |||
| 8.4 | Noise level at the driver's ear | dB(A) | ＜80 | ＜80 | |
| Note: | 【1】With the safety edge, the vehicle length is approximately +50mm; | ||||
| 【2】Add safety edge b1 about +100mm; | |||||
| 【3】If the distance between the outer sides of the forks is greater than 680mm, the load needs to be reduced and an assessment is required; | |||||
| 【4】Add safety edge turning radius of about +50mm; | |||||
| 【5】Manual mode, maximum speed in automatic mode is 1.5m/s; | |||||
| 【6】Manual mode. | |||||

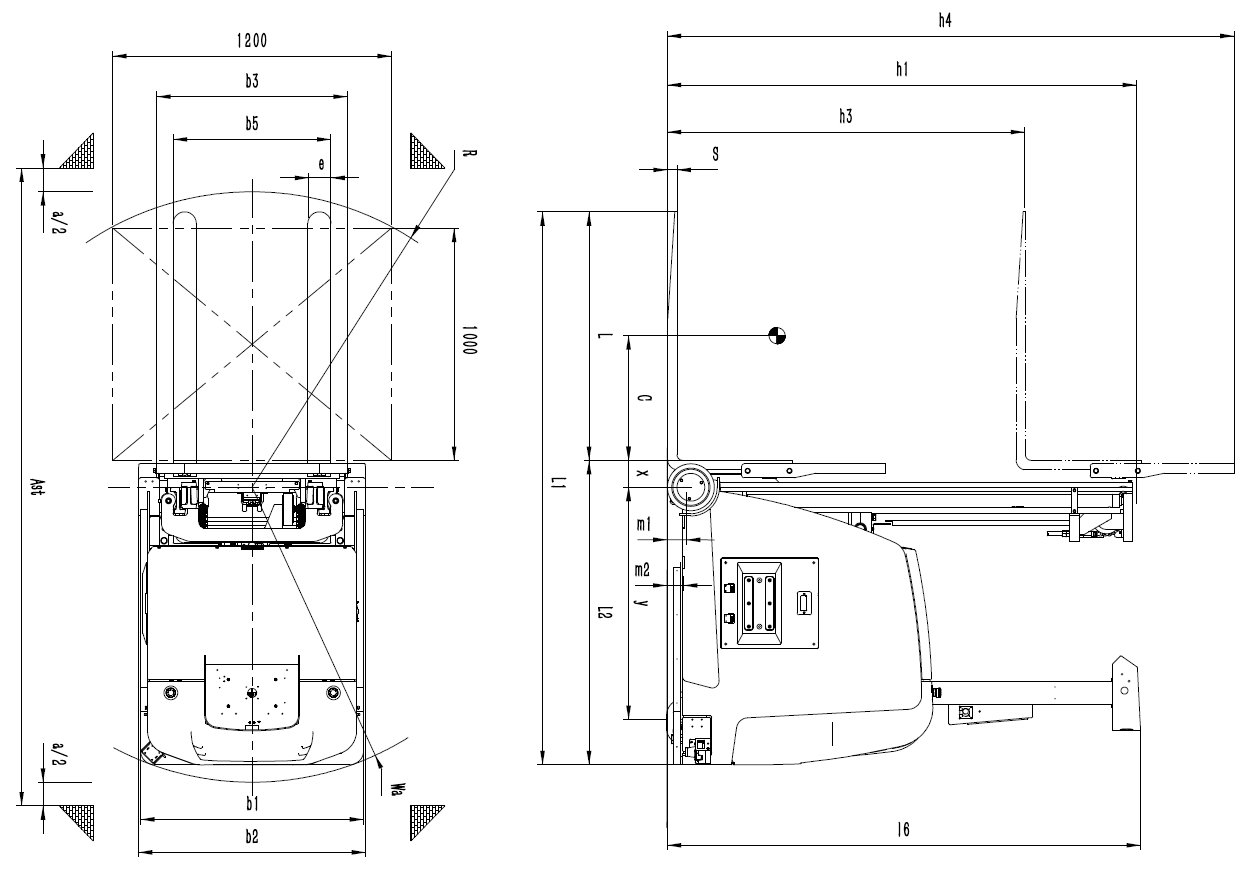

2D view
| Load chart 1MBV15 | Load chart 1MBV15R | |||||||||||||||
| Mast Type | Mast Model | Lifting height | Load Capacity | Mast Type | Mast Model | Lifting height | Load Capacity | |||||||||
| mm | kg | mm | kg | |||||||||||||
| C(mm)➤@ | 500 | 600 | 700 | 800 | 900 | C(mm)➤@ | 500 | 600 | 700 | 800 | 900 | |||||
| 45L | 4500 | 600 | 450 | 300 | 45L | 4500 | 600 | 450 | 300 | |||||||
| 40L | 4000 | 800 | 600 | 450 | 300 | 40L | 4000 | 800 | 600 | 450 | 300 | |||||
| 35L | 3500 | 1100 | 850 | 650 | 500 | 300 | 35L | 3500 | 1100 | 850 | 650 | 500 | 300 | |||
| 30L | 3000 | 1500 | 1200 | 900 | 650 | 450 | 30L | 3000 | 1500 | 1200 | 900 | 650 | 450 | |||
| 25L | 2500 | 1500 | 1200 | 900 | 650 | 450 | 25L | 2500 | 1500 | 1200 | 900 | 650 | 450 | |||
| 20L | 2000 | 1500 | 1200 | 900 | 650 | 450 | 20L | 2000 | 1500 | 1200 | 900 | 650 | 450 | |||
| Note: | 1. If the outside width of the forks is more than 680mm and a side shifter is installed, the load will not be reduced if one item is selected, but the combined load will be reduced by 200kg; | |||||||||||||||
| 2. Optional mast tilt function, 0° front and 3° rear, without load reduction; | ||||||||||||||||
| 3. The comprehensive load capacity of the additional accessories must be reviewed; | ||||||||||||||||
| Mast parameter 1MBV15～1MBV15R | |||||||
| Mast Type | Mast Model | Lifting height | Mast closed height | Mast extended height | Free lifting height | Mast inclination angle (optional) | |
| mm | (°) | ||||||
| model➤1MBV | 15 | 15R | All series | ||||
| Duplex | 45L | 4500 | 2820 | 5485 | / | / | 0/3 |
| 40L | 4000 | 2575 | 4985 | / | / | 0/3 | |
| 35L | 3500 | 2270 | 4435 | / | / | 0/3 | |
| 30L | 3000 | 2020 | 3935 | / | / | 0/3 | |
| 25L | 2500 | 1770 | 3435 | / | / | 0/3 | |
| 20L | 2000 | 1520 | 2935 | / | / | 0/3 | |
| Triplex | 45S | 4500 | 2084 | 5573 | / | / | 0/3 |
| 40S | 4000 | 1916 | 5072 | / | / | 0/3 | |
