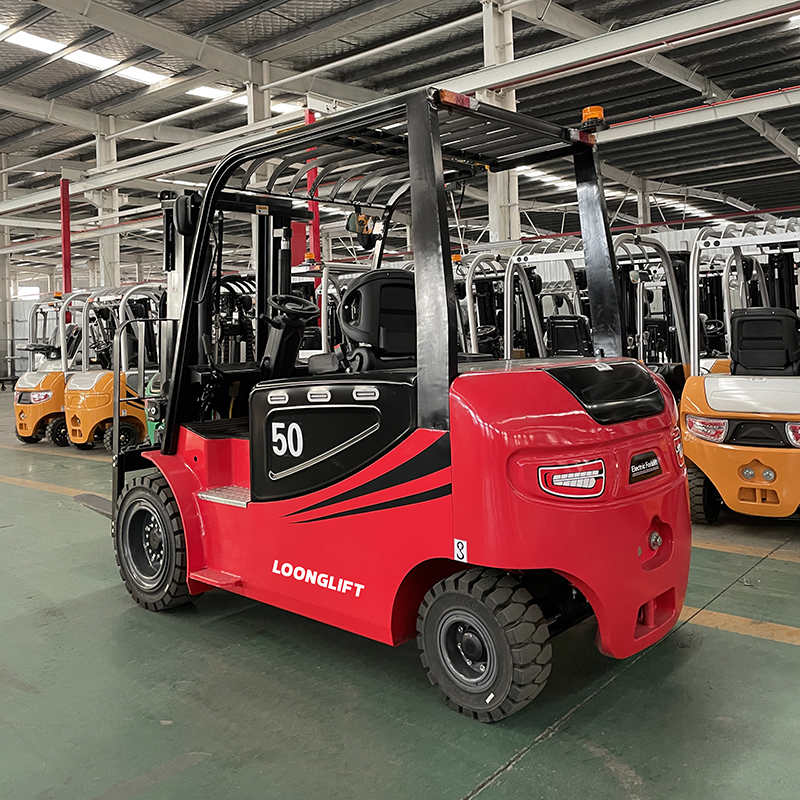

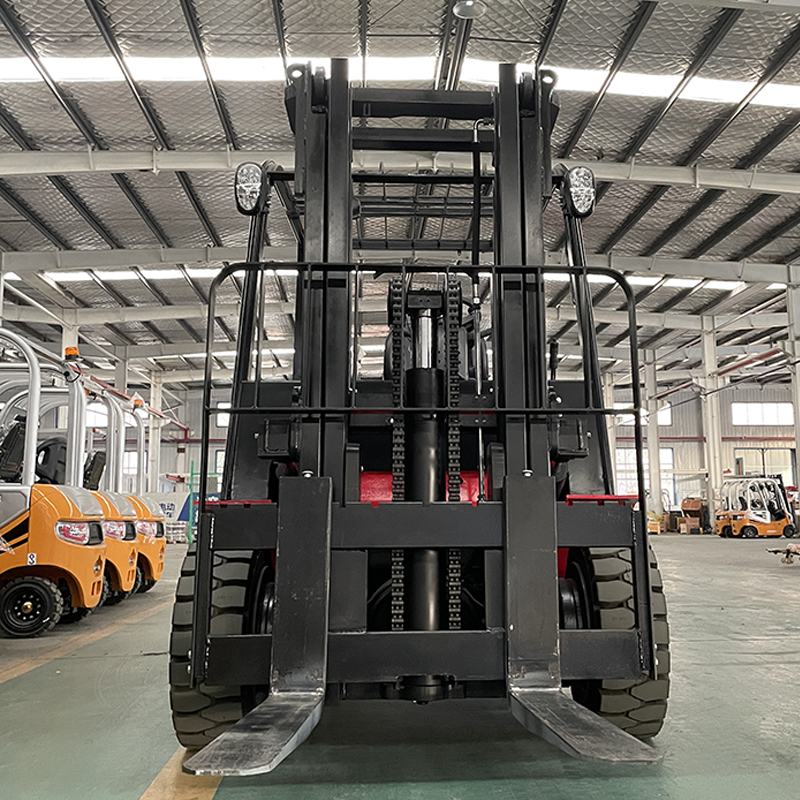

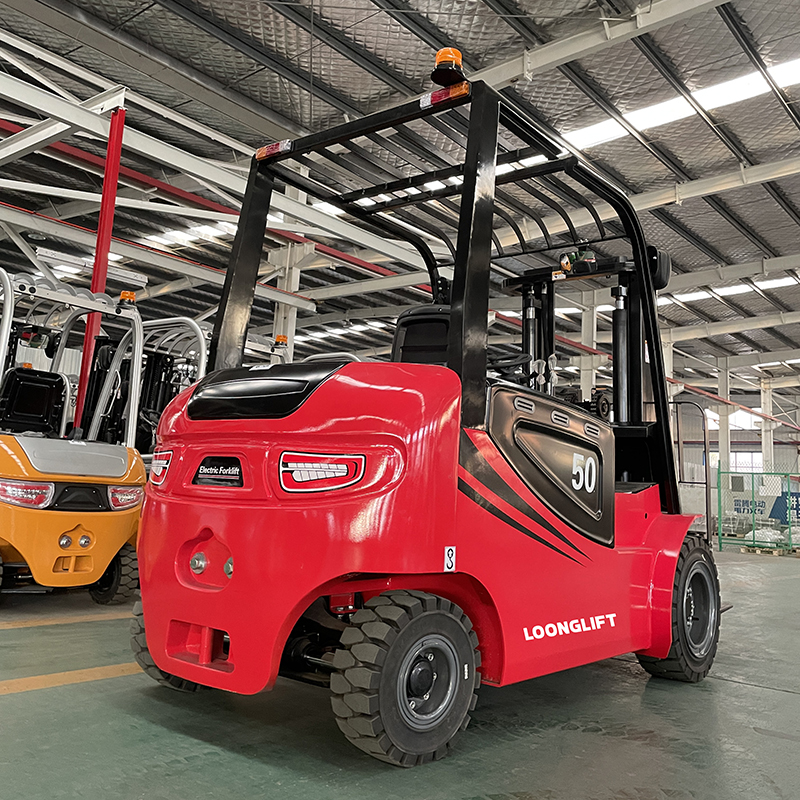

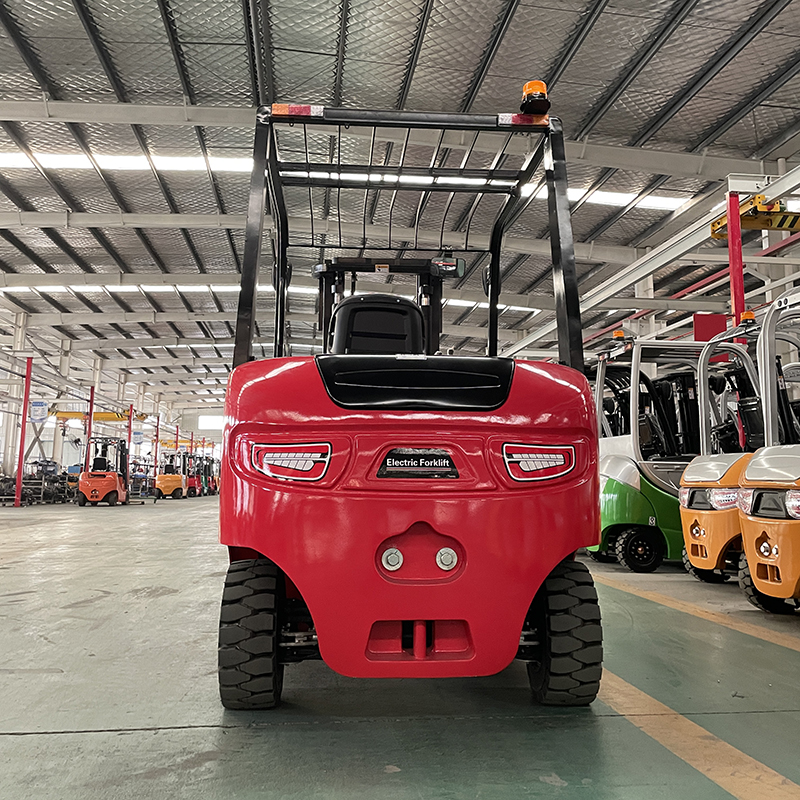

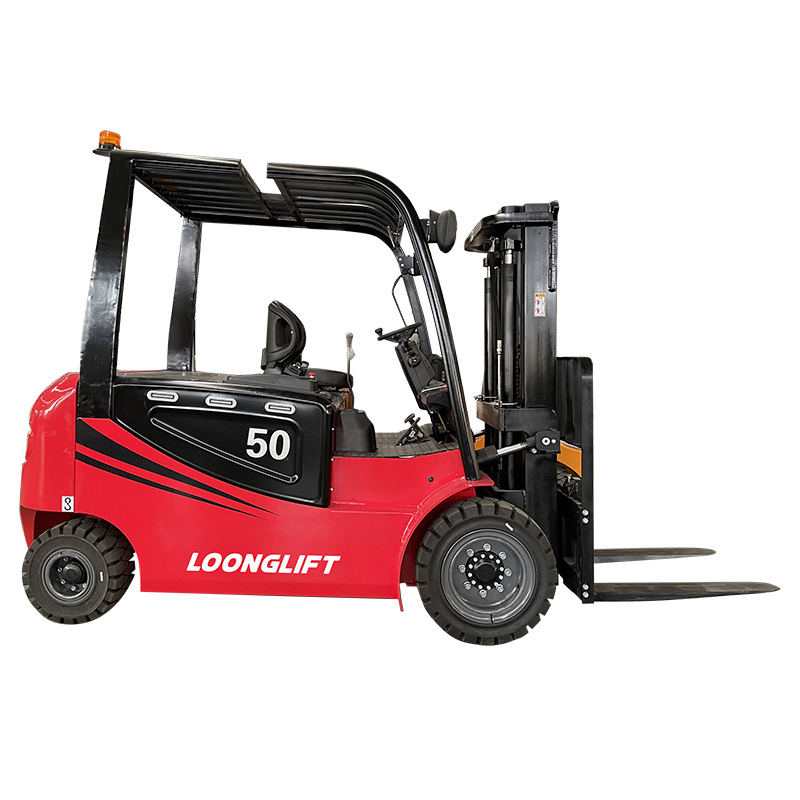

Forklift
| 制造商 manufacturer | LOONGLIFT | ||
| 特性 Characteristics | 单位unit | ||
| 型号 Model | CPD-50 | ||
| 驾驶方式 driving mode | 座驾式 seated | ||
| 额定起重量 rated capacity | Q | kg | 5000 |
| 载荷中心距 load center distance | C | mm | 500 |
| 动力方式 power mode | 铅酸蓄电池 lead-acid battery | ||
| 轴距 wheelbase | L1 | mm | 2040 |
| 轮胎 Tyre | |||
| 轮胎类型 tyre type | 实心胎 | ||
| 车轮数量（前/后） wheels number(front/rear) | 2/2 | ||
| 前轮距 front track | W3 | mm | 1310 |
| 后轮距 rear track | W2 | mm | 1110 |
| 轮胎,前 tyre(front) | 250-15 | ||
| 轮胎,后 tyre(rear) | 21X8-9 | ||
| 尺寸 Size | |||
| 前悬距 front overhang | L2 | mm | 573 |
| 门架倾角,前/后 tilt of the mast,front/rear | α/β | ° | 6/12 |
| 门架缩回时高度 height,mast retraction | H1 | mm | 2340 |
| 自由起升高度 free lift height | H3 | mm | 120 |
| 最大起升高度 overall maximum lift height | H | mm | 3000 |
| 门架伸出时高度 height,mast extended | H2 | mm | 3790（Excluding forks） |
| 护顶架高度 overhead guard height | H4 | mm | 2350 |
| 货叉调节范围（外侧）最大、最小 lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1240/300 |
| 货叉尺寸 厚x宽x长 fork size(LxWxT) | T*W*L4 | mm | 55*150*1070 |
| 车体长度 (不含货叉） truck body length(fork excluded) | L＇ | mm | 2990 |
| 车体宽度 truck body width | W1 | mm | 1585 |
| 转弯半径 turning radius | R | mm | 2700 |
| 门架离地间隙 groubd clearance under mast | H5 | mm | 160 |
| 轴距中心离地间隙（满载） Ground clearance at center of wheelbase(laden) | H6 | mm | 160 |
| 直角堆垛通道宽度(托盘1000x1000mm,间隙200mm) width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | 4543 |
| 直角堆垛通道宽度(托盘1200x1200mm,间隙200mm) width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | 4673 |
| 性能 Performance | |||
| 行驶速度，满/空载 travel speed,laden/unladen | km/h | 12/13 | |
| 起升速度，满/空载 lifting speed,laden/unladen | mm/s | 250/280 | |
| 下降速度，满/空载 lowering speed,laden/unladen | mm/s | 450 | |
| 最大爬坡度，满/空载 maximum negoniable gradient,laden/unladen | % | 12/20 | |
| 重量 Weight | |||
| 自重（包含蓄电池） service mass(with battery) | kg | 7100 | |
| 桥负荷：空载，前/后 axle load:unloaded,front/rear | kg | 3200/3900 | |
| 桥负荷：满载，前/后 axle load:loaded,front/rear | kg | 10850/1250 | |
| 蓄电池电压/容量 battery voltage /nominal capacity | V/Ah | 80V/500Ah | |
| 蓄电池 battery weight | kg | 1100 | |
| 电气配置 Electrical configuration | |||
| 驱动电机功率-60分钟 drive motor power-60 minutes | kW | 18AC | |
| 起升电机功率-15分钟 lift motor power-15 minutes | kW | 25AC | |
| 驱动电机控制方式 drive motor controlling mode | MOSFET/AC | ||
| 起升电机控制方式 lifting motor controlling mode | MOSFET/AC | ||
| 行车制动/停车制动 service brake/parking brake | Hydraulic/Mechanial | ||
| *本公司保留更改产品设计和规格的权利，恕不另行通知。 | |||
