LOONGLIFT 2Ton Electric 3-Wheel Forklift-Forklift-Ningbo loonglift Logistics Equipment Co., Ltd.

Inquiry Now

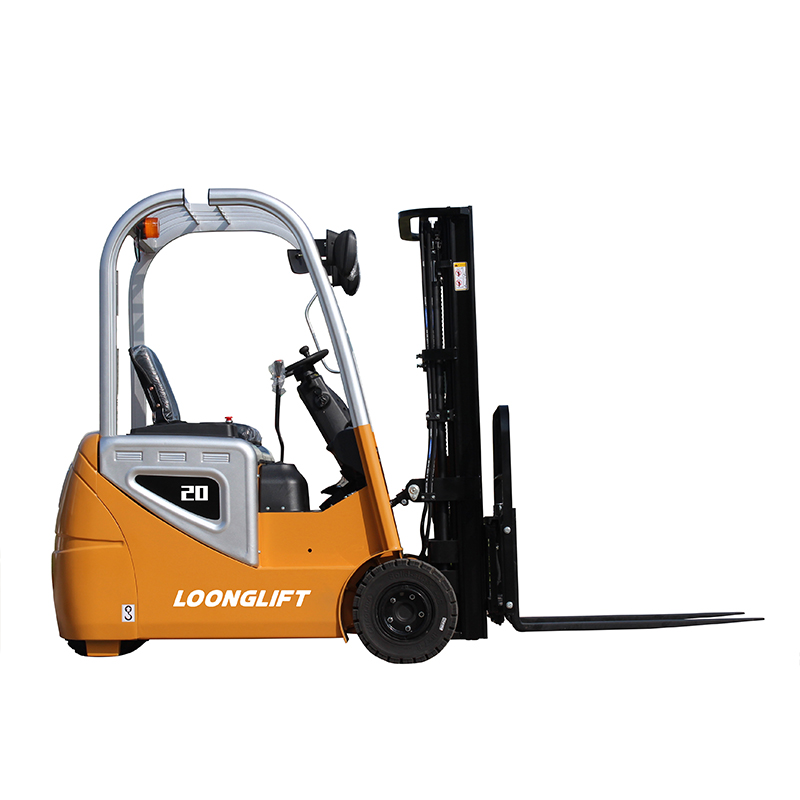

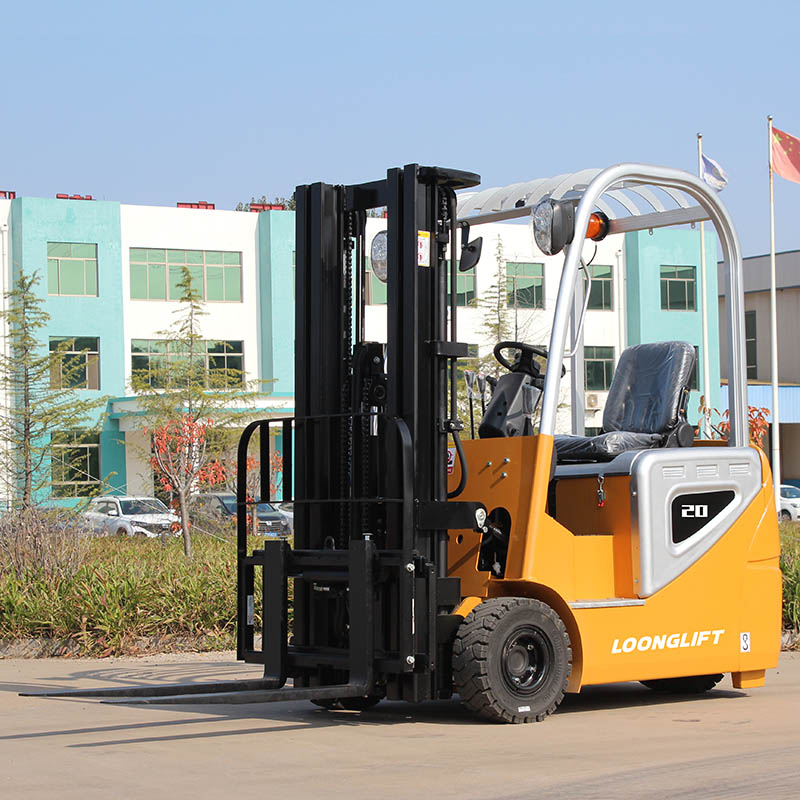

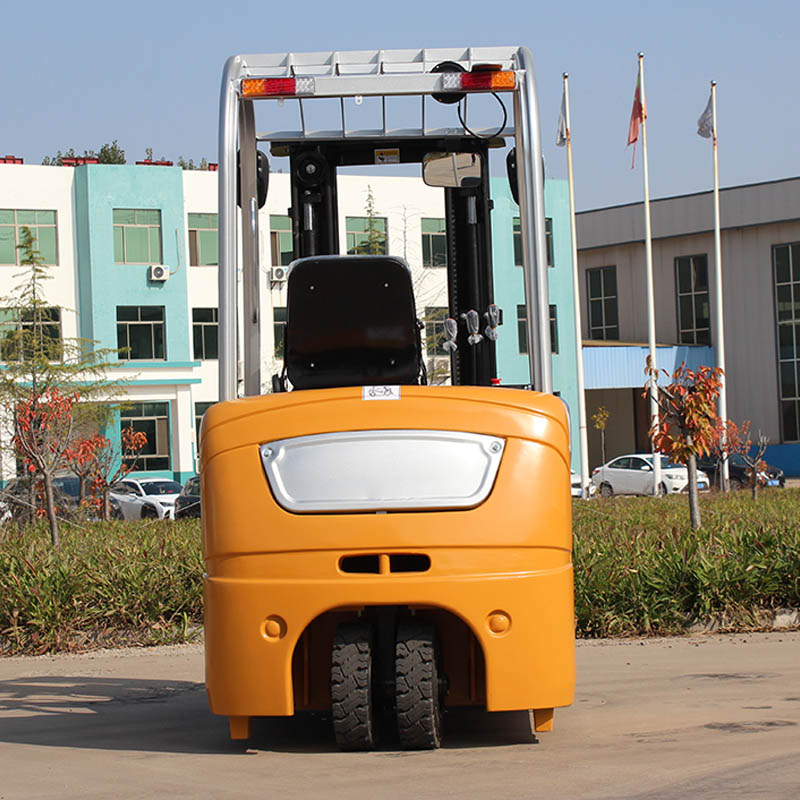

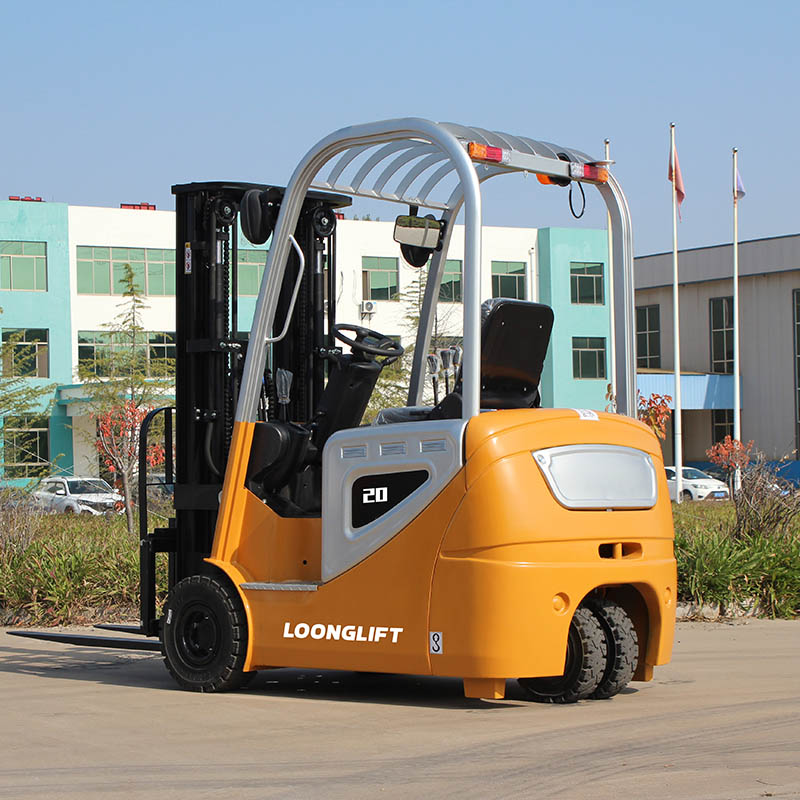

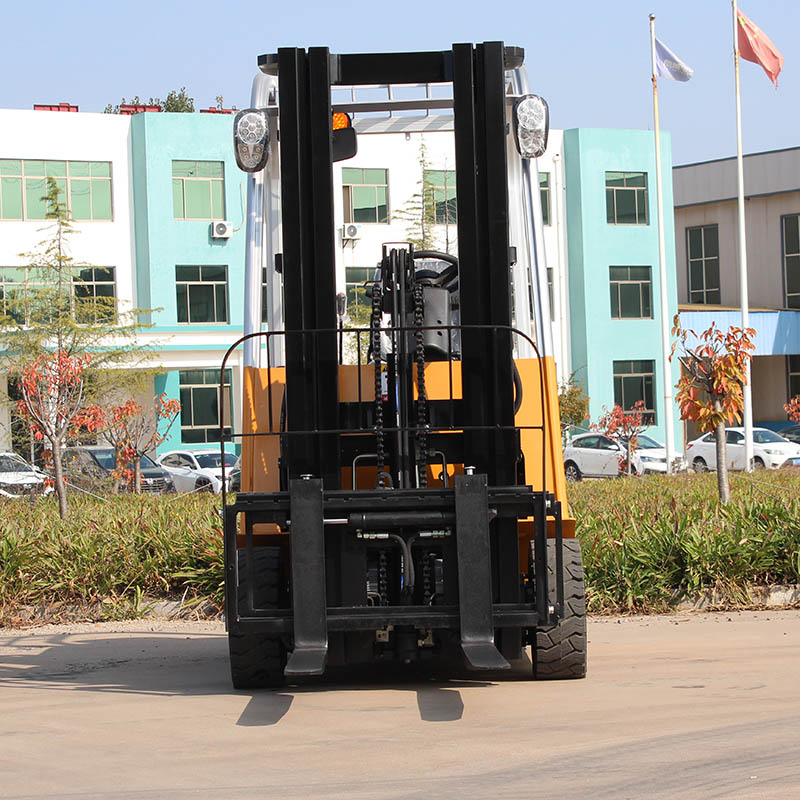

3 WHEEL ELECTRIC FORKLIFT
	1	Model			CPD-20E	CPD-18E	CPD-16E
	2	Power type			Battery	Battery	Battery
	3	Tire			Solid	Solid	Solid
	4	Operation type			seated	seated	seated
	5	Rated loading		kg	2000	1800	1600
	6	Loading cneter		mm	500	500	500
Size	7	Lift height		mm	3000	3000	3000
	8	Free lift height		mm	40	40	35
	9	Fork size		mm	107010040	107010040	107010035
	10	Mast tilt F/B		Deg	6/6.5	6/6.5	6/6.5
	11	Front overhang		mm	370	370	365
	12	Rear overhang		mm	200	200	200
	13	Overhead guard clearance		mm	1025	1025	1025
	14	Min.Ground Clearance	Mast	mm	80	80	80
	15	Min.Ground Clearance	Chassis	mm	85	85	85
	16	Size	Length without fork	mm	2060	1955	1955
	17		Width	mm	1160	1100	1100
	18		Mast lowered height	mm	2020	2020	2020
	19		Mast extened height	mm	4010	4010	4010
	20		Overhead guard height	mm	2110	2110	2110
	21	Min.turn radius		mm	1890	1770	1770
	22	Width of aisle right-anglestacking		mm	3550	3400	3400
Performance	23	Speed	Travel speed,unladen	km/h	12	12	12
	24		Travel speed,laden	km/h	11.5	11.5	11.5
	25		Lift speed,unladen	mm/sec	300	300	300
	26		Lift speed,laden	mm/sec	280	280	280
	28	Maximum traction (laden)		KN	11	10	9
	29	Max Gradeability,laden		%	15	18	20
Tire	30	Tyre	Front		18X7-10	18X7-10	18X7-10
	31	Tyre	Rear		15*4.5-8	15*4.5-8	15*4.5-8
	32	Tread	Front	mm	945	945	945
	33	Tread	Rear	mm	175	175	175
	34	Wheel base		mm	1460	1355	1355
Weight	35	Self weight		kg	2900	2800	2700
	36	Bridge load	laden	kg（F）	4675	4430	4035
	37		laden	kg（B）	525	520	565
	38		unladen	kg（F）	1480	1465	1410
	39		unladen	kg（B）	1720	1685	1600
Power	40	Battery	voltage/capacity	v/Ah	60/260	60/260	60/210
	41	Battery	weight	kg	400	400	400
	42	Motor	Driving	kw	6	6	6
	43	Motor	Lifting	kw	6	6	6
	45	Controller	Driving		AC	AC	AC
	46	Controller	Lifting		AC	AC	AC
