Distinguishing mark

1.2

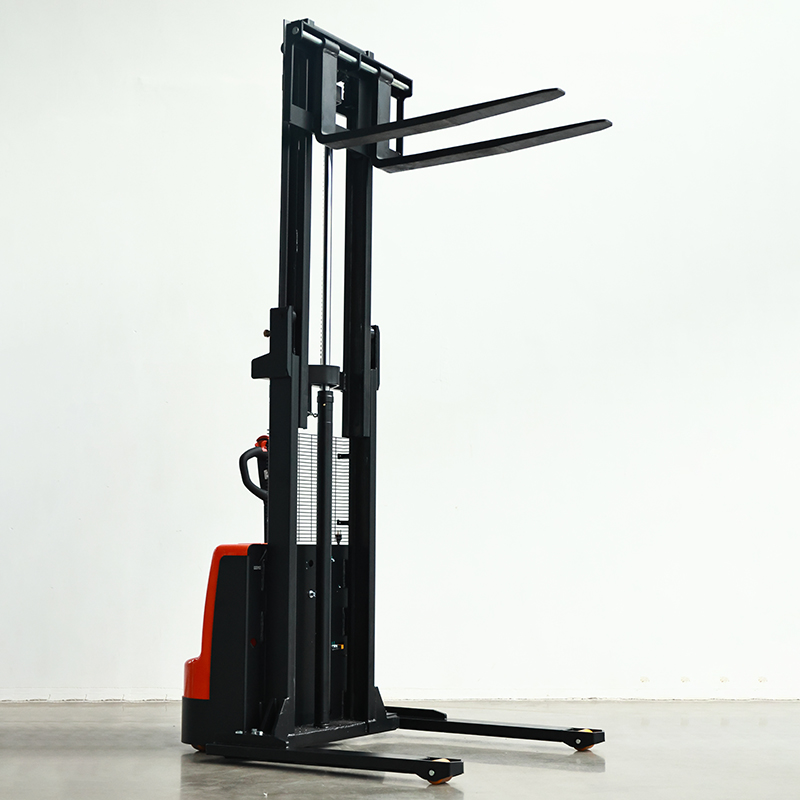

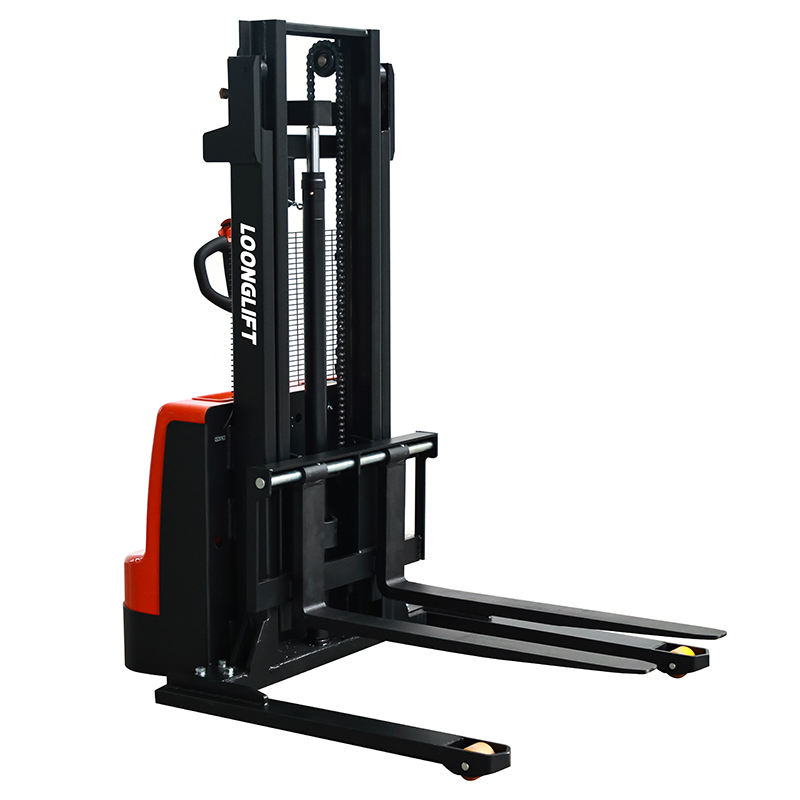

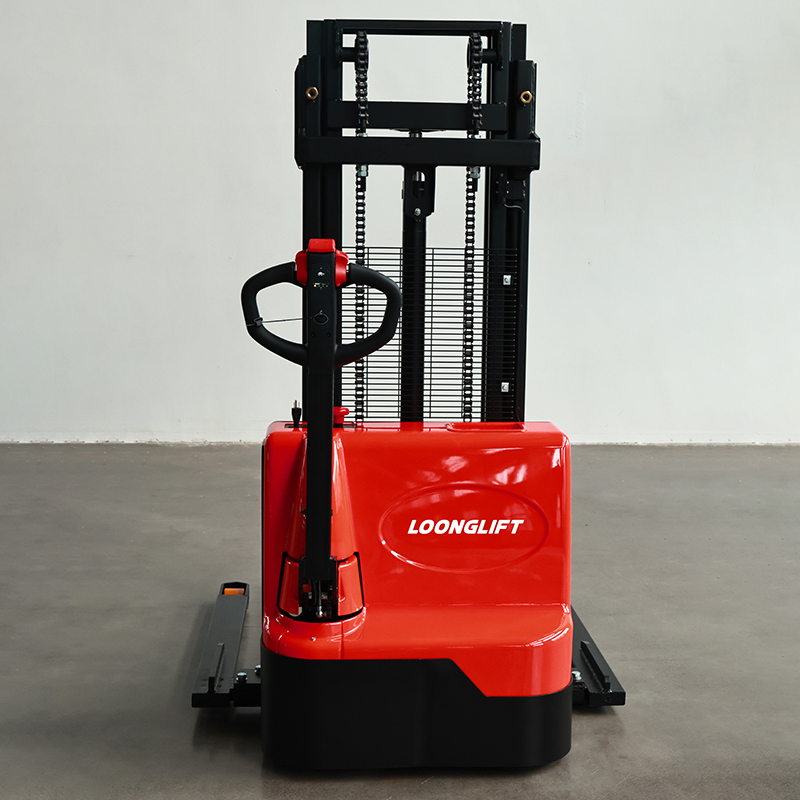

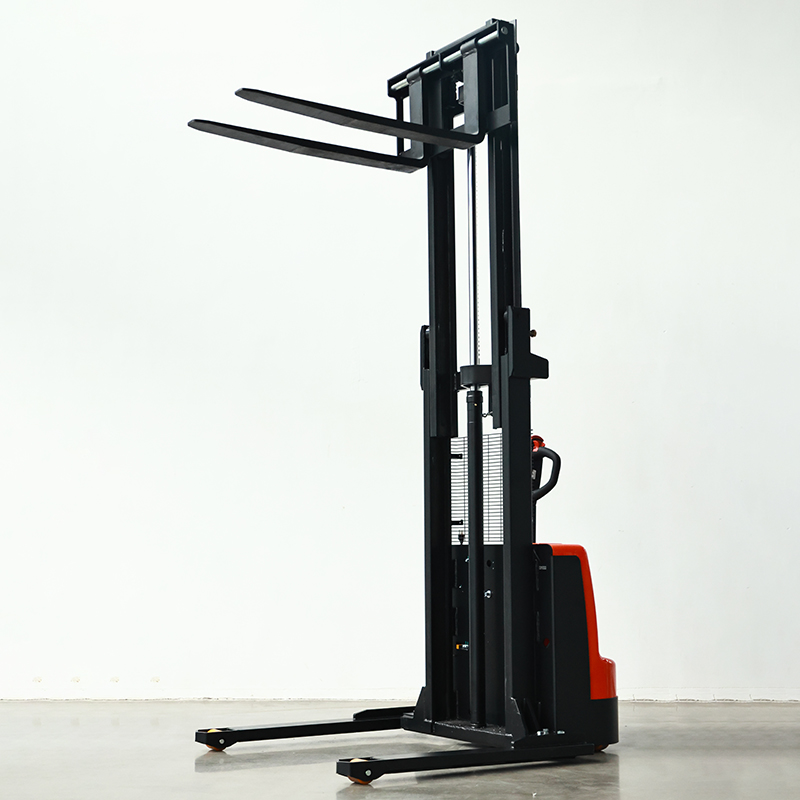

Manufacturer`s type designation

ELES-15J

1.3

Power (battery ,diesel, petrol, gas, manual)

Battery

1.4

Operator type

Pedestrian

1.5

Load Capacity / rated load

Q (t)

1.2

1.5

1.6

Load centre distance

C (mm)

500

1.8

Load distance ,centre of drive axle to fork

X (mm)

770

1.9

Wheelbase

Y(mm)

1250

Weight

2.1

Service weight

kg

520

2.2

Axle loading, laden front/rear

kg

2.3

Axle loading, unladen front/rear

kg

Tires, chassis

3.1

Tires

PU

3.2

Tire size, front

Æ x w (mm)

φ210×70

3.3

Tire size, rear

Æ x w (mm)

φ80×70

3.4

Additional wheels(dimensions)

Æ x w (mm)

φ150×50

3.5

Wheels, number front/rear(x=driven wheels)

1x+1/4

3.6

Track, front

b₁₀ (mm)

540

3.7

Track, rear

b₁₁ (mm)

1090/1230/1370

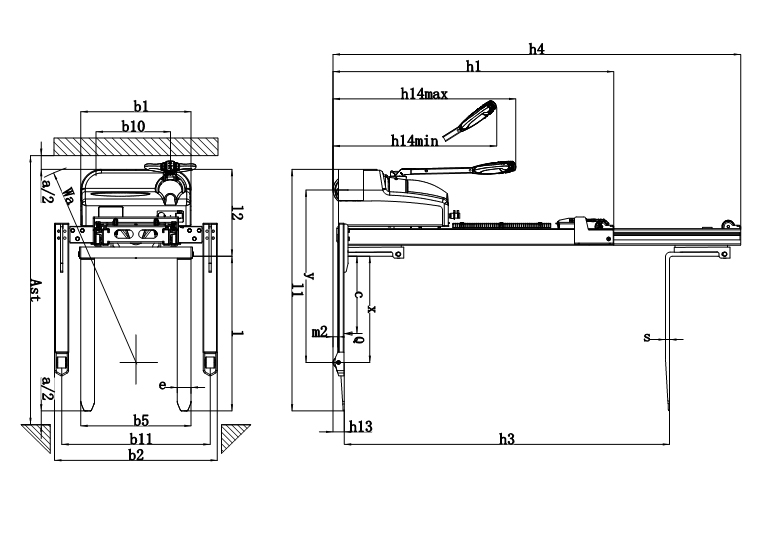

Dimensions

4.2

Lowered mast height

h₁ (mm)

1530

4.3

Free Lift height

h₂ (mm)

4.4

Lift height

h₃ (mm)

1910

4.5

Extended mast height

h₄ (mm)

2490

4.9

Height of tiller in drive position min./ max.

h₁₄ (mm)

700/1315

4.15

Height, lowered

h₁₃ (mm)

90

4.19

Overall length

l₁ (mm)

1750

4.20

Length to face of forks

l₂ (mm)

680

4.21

Overall width

b₁ (mm)

800/(1190/1330/1470)

4.22

Fork dimensions

s/e/l (mm)

35/100/1070

4.25

Distance between fork-arms

b₅ (mm)

210~800

4.32

Ground clearance, centre of wheelbase

m₂ (mm)

30

4.33

Aisle width for pallets 1000X1200 crossways

Ast (mm)

2358

4.34

Aisle width for pallets 800X1200 lengthways

Ast (mm)

2302

4.35

Turning radius

Wa (mm)

1515

Performance data

5.1

Travel speed, laden/ unladen

Km/h

4/4.5

5.2

Lift speed, laden/ unladen

m/s

0.06/0.11

5.3

Lowering speed, laden/ unladen

m/s

0.09/0.06

5.8

Max. gradeability, laden/ unladen

%

3/7

5.10

Service brake

Electromagnetic

Electric- engine

6.1

Drive motor rating S2  60min

kw

0.75

6.2

Lift motor rating at S3  4.5%

kw

2.2

6.3

Battery acc. to DIN 43531/35/36  A, B, C, no

6.4

Battery voltage, nominal capacity K5

V/Ah

24/80(100)

6.5

kg

2×25

6.6

Energy consumption acc: to VDI cycle

kWh/h

Additional data

8.1

Type of drive control

DC speed control

8.4

Sound level at driver`s ear acc. to EN 12053

dB(A)

69

QES-ESL

Single stage mast

2010

—

1510

2010

1600

Two stage mast

1530

—

1910

2490

2000

1780

—

2410

2990

2500

2030

—

2910

3490

3000

2180

—

3210

3790

3300

2280

—

3410

3990

3500

Two stage mast FFL

(Full-Free-Lift)

—

—

—

—

—

Three stage mast

—

—

—

—

—

Three stage mast FFL

(Full-Free-Lift)

—

—

—

—

—
